Also, if the supply voltage is very high compared to what the motor needs to achieve the set current, the duty cycle will be very low, which also leads to significant differences between average and RMS currents.

This board ships with 0. One way to set the drv88334 limit is to put the driver into full-step mode and to measure the current running through a single motor coil without clocking the STEP input.

AmazonGlobal Ship Orders Internationally. Amazon Restaurants Food delivery from local restaurants.

DRV Low Voltage Stepper Motor Driver Carrier | | Pololu

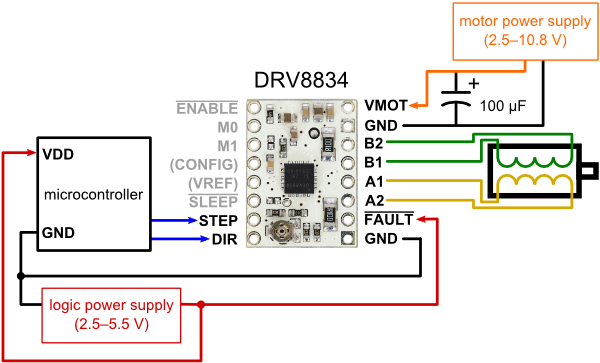

This schematic is also available as a downloadable pdf k pdf. It has a pinout and interface that are nearly identical to those of our A carriersso it can be used as a drop-in replacement for those boards in many applications. View Cart Proceed to checkout. The chip has two different inputs for controlling its power states: Simple step and direction control interface Six different step resolutions: More generally, rewiring anything while it is powered is asking for trouble. To achieve high step rates, the motor supply is typically higher than would be permissible without active current limiting.

Pololu DRV8834 Low-Voltage Stepper Motor Driver Carrier

Also, if the supply voltage is very high compared to what the motor needs to achieve the set current, the duty cycle will be very low, which also leads to significant differences between average and RMS currents. Print Email a friend Feeds. Item is in your Cart. The current limit potentiometer is in a different location. There's a problem loading this menu right now.

View additional product data. For those with color-sensitive applications, note that the DRV carrier is white.

Products New Products Specials! Additionally, please note that the coil current is a function of the set current limit, but it does not necessarily equal the current limit setting. Share your thoughts motr other customers. For the microstep modes to function correctly, the current limit must be set low enough see below so that current limiting gets engaged.

Pololu - DRV Low-Voltage Stepper Motor Driver Carrier

Amazon Drive Cloud storage from Amazon. The DRV can deliver more current than the A without mltor additional cooling based on our full-step tests: Amazon Music Stream millions of songs.

Learn more about Amazon Prime. Under the right conditions, these spikes can exceed the Get fast, free shipping with Amazon Prime. HTML is not translated!

A microstepping driver such as the DRV allows higher resolutions by allowing intermediate step locations, which are achieved by energizing the coils with intermediate current levels. This product can get hot enough to burn you long before the chip overheats. Add to cart Add to wish list. Image Unavailable Image not available for Color: Please note that measuring the current draw at the power supply will generally not provide an accurate measure of the coil current. There are a few differences between the two modules that should be noted, however:.
